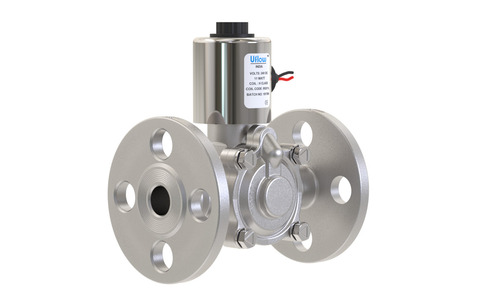

UFLOW PILOT OPERATED DIAPHRAGM
The UFLOW PCN Series is a pilot-operated diaphragm type solenoid valve used for controlling the flow of fluids such as water, air, oil, gas, chemicals, and LPG in industrial systems. These valves are designed for high flow capacity and reliable operation in automation and process industries.
Type: Pilot Operated Diaphragm Solenoid Valve
Function: 2/2 Way (Normally Closed or Normally Open)
Pipe Size :- 1/2",3/4",1",11/2",2",3"
Operation: Solenoid coil controls a pilot valve that operates the diaphragm to open/close the main flow
Body Material: Stainless Steel (CF8 / CF8M)
Port Size Range: 3/8" to 4"
Pressure Range: 0.5 bar to 12 bar
Temperature Range: −30°C to 180°C (depends on seal material)
Voltage Options: 12V DC, 24V DC, 24V AC, 110V AC, 230V AC
NBR: −30°C to 90°
EPDM: −10°C to 140°C
Viton (FKM): −10°C to 180°C
Corrosion-resistant internal parts (SS316 equivalent)
Suitable for food, pharmaceutical, and chemical industries
High flow capacity with low power consumption
Manual override option available
90% power saver coil option
Optional water hammer reducer
