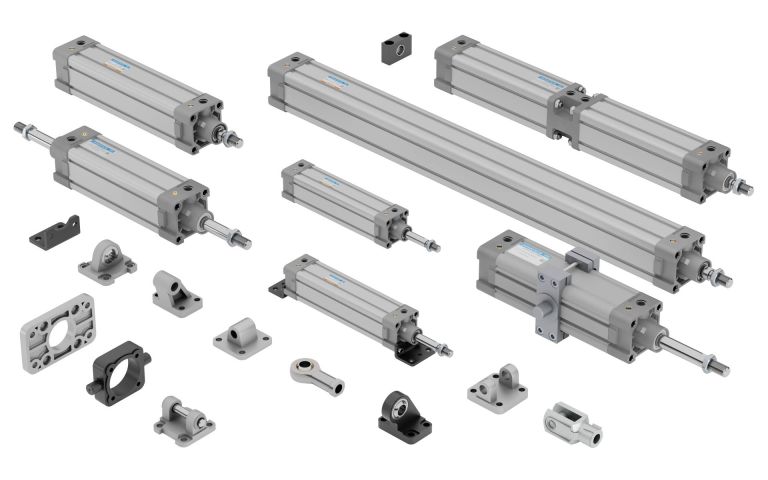

JANATICS SQUARE PROFIL AIR CYLINDER A23 AND A24 SERIES

The Janatics A23 and A24 Series 'Square-Profile' Air Cylinders are Double-Acting Pneumatic Cylinders designed in accordance with ISO 15552 / VDMA 24562 standards. They feature a durable aluminum square-profile barrel, adjustable cushioning at both ends, and various mounting options for easy installation. According to the official Janatics catalog, the A23 series is magnetic, while the A24 series is non-magnetic.

Brand: Janatics
Series: A23 / A24
Cylinder Type: Square Profile Pneumatic Cylinder
Standard: ISO 15552 / VDMA 24562
Operation: Double Acting
Bore Size: Ø32, 40, 50, 63, 80, 100, 125 mm
Standard Stroke Length: 25–500 mm (depending on bore size)
Working Pressure: 0.5–10 bar
Ambient Temperature: −10°C to +60°C
Medium Temperature: +5°C to +50°C
Barrel Material: Aluminum Profile
Mounting Options: Foot, Front Flange, Rear Flange, Clevis, and Trunnion
