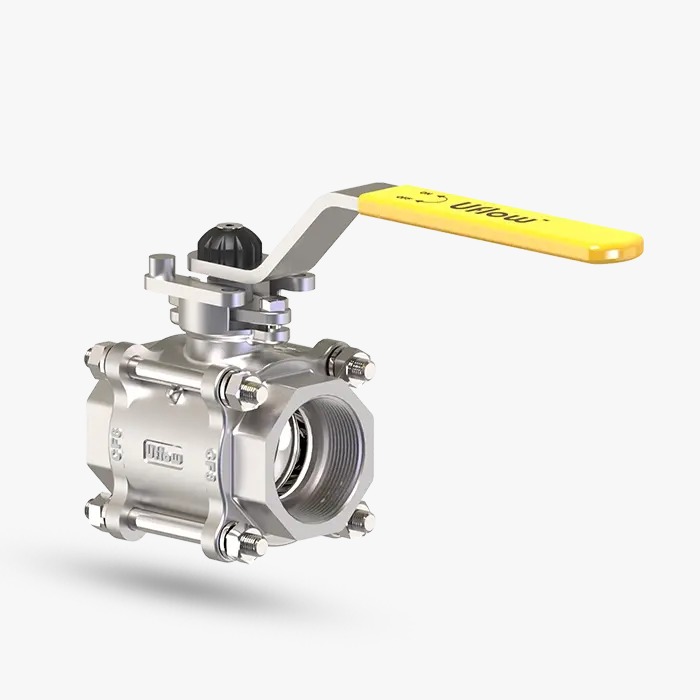

UFLOW 3 PIECE DESIGN BALL VALVE JC SERIES
UFLOW JC Series 3-Piece Ball Valve is a full-bore industrial ball valve designed for reliable on/off flow isolation in demanding piping applications. Its 3-piece construction allows easier maintenance, while the floating ball and blow-out-proof stem provide dependable operation and sealing.
Key Features
3-piece design, full-bore ball valve
Floating ball design
Blow-out-proof stem
Precision-machined, mirror-finished ball for bubble-tight shut-off
Available with lever, gear, pneumatic or actuator operation

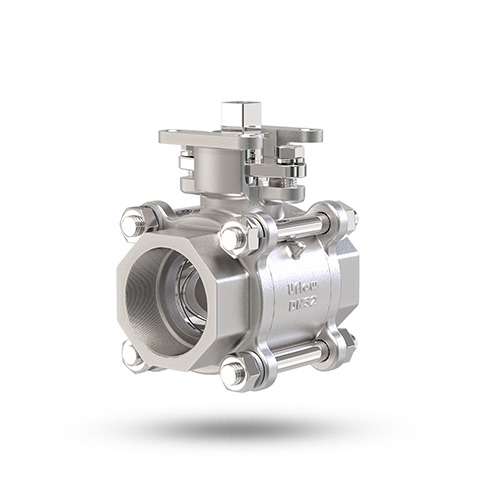

ISO 5211 mounting pad for actuator installation
Flanged, screwed and socket-weld configurations available
Specifications
Series: JC
Size: 1/2" to 4" (DN15–DN100)
Pressure Class: 150# / 300#
Body Materials: CF8, CF8M, CF3M, WCB
Seat/Seal: PTFE, RPTFE, CFT, GFT, PEEK
Stem: SS304 / SS316 / SS410
Connection: Flanged / Screwed / Socket Weld
