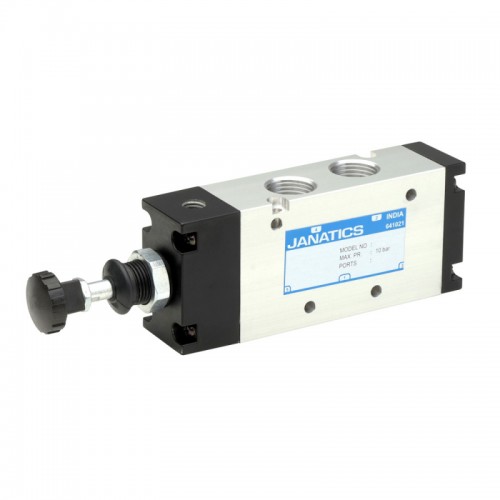

JANATICS PUSH PULL OPERATED VALVES DS2

• Push Pull Valves from Janatics are manual pneumatic directional control valves operated by a push-and-pull action on a lever or knob to switch valve positions.
  3/2 Valves – Three ports, two positions; typically used for single-acting actuators.
  5/2 Valves – Five ports, two positions; used for double-acting cylinders.
  Detent (latch) – Stays in the selected position until changed again.
  Spring return – Returns to a default position when released.

• Manual actuation — no solenoid or air pilot required.
  Compact and panel-mountable design.
  Available in multiple sizes (e.g., 1/8″, 1/4″, 1/2″).
  Work with compressed air up to ~10 bar (typical pneumatic systems).
  COMPACT VALVE - 1/8Series DS2

  • 3/2 NC and NO Valves & 5/2 valves
  • Compact size
  • Suitable for panel mounting
  • Mounting provision for individual unit
