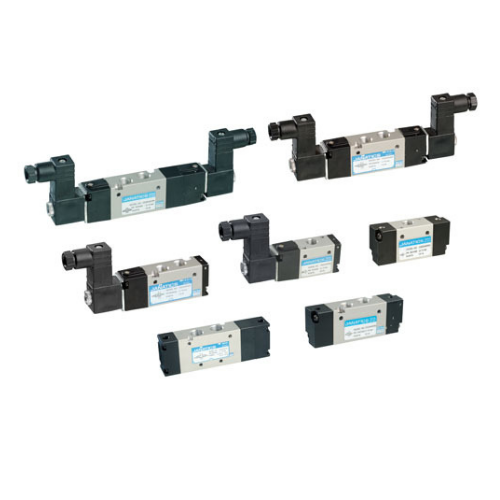

JANATICS COMPACT VALVE 1/8",1/4" AND 1/2" DS2

• Valve Types:
  ➤ 3/2 (3-port, 2-position)
  ➤ 5/2 (5-port, 2-position)
  ➤ 5/3 (5-port, 3-position) options depending on model
  Manual Override: Allows manual operation without electrical signal where necessary

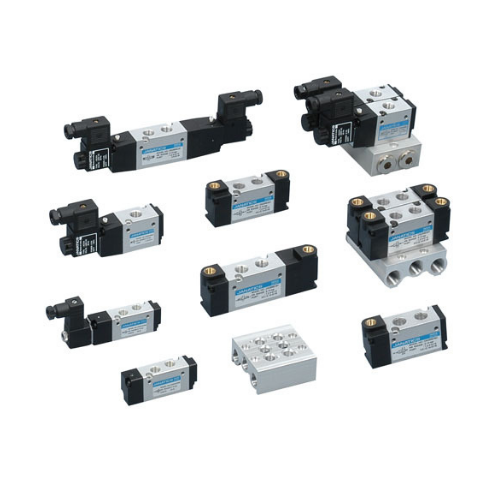

  Mounting Options: Individual mounting or manifold mounting for multi-station systems
  Compact Size: Space-saving design suitable for tight installations

 Technical Specs (typical)

• Medium: Filtered, lubricated compressed air
  Working Pressure: Usually around 2 to 10 bar (30–145 psi depending on size)
  Ambient / Medium Temp: Typically +5°C to +60°C
  Coil Voltages: AC (24 V, 48 V, 110 V, 220 V) and DC (12 V, 24 V, etc.) available
  Duty Cycle: Continuous duty
  Coil Protection: Often IP65 rated for dust/protection in industrial environments
  Materials: Aluminium body with nitrile seals and brass/zinc components

 Flow Performance (example)

• Smaller 1/8″ valves: lower flow capacities (e.g., ~450 Nl/min)
  Larger 1/4″ or 1/2″ valves: can pass up to ~1000–3500 Nl/min depending on port size and type

Send inquiry for JANATICS COMPACT VALVE 1/8",1/4" AND 1/2" DS2
