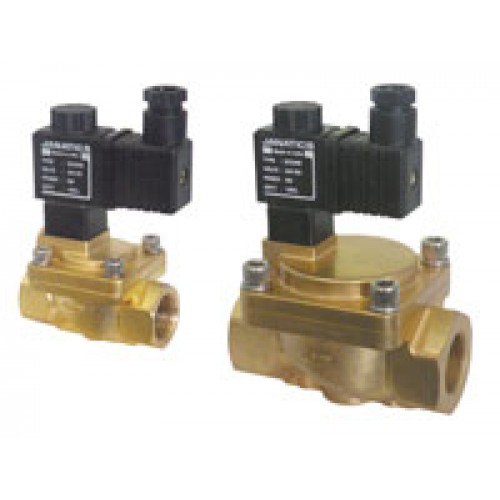

JANATICS SOLENOID VALVE DMN SERIES

DMN Series Solenoid Valves

• Type: 2/2 pilot-operated solenoid valve (normally closed)
  Design: Diaphragm-operated poppet seat for reliable sealing and minimal wear
  Duty: Continuous duty cycle, suitable for frequent switching and industrial automation
  Manual operator: Push-type manual override for emergency or test operation
  Compact size with good flow characteristics for space-constrained installations

  Typical Specifications (varies by model)

• Medium: Compressed air — dry, filtered, lubricated
  Operating Pressure: ~0.5 to 10 bar (varies by size)
  Port Sizes: G1/4, G3/8, G1/2, etc. depending on model
  Flow Rates:
  • G1/4 ≈ 1600 L/min
  • G3/8 ≈ 3600 L/min
  • G1/2 ≈ 4000 L/min
  (typical figures from spec sheet)
  Voltage Options: AC (24 V, 48 V, 110 V, 220 V) and DC (12 V, 24 V, etc.)
  Ambient Temp: ~-10 °C to +60 °C
  Medium Temp: ~+5 °C to +50 °C
  Construction: Brass body, nitrile diaphragm with stainless and polymer internals
