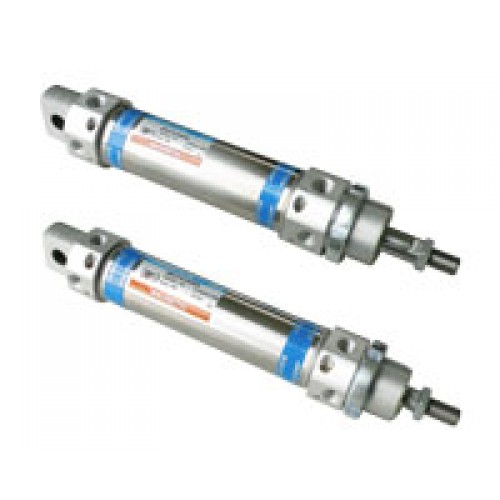

JANATICS ROUND CYLINDER A51 AND A52 SERIES

The Janatics A51 & A52 Series of Round Pneumatic Cylinders are 'Double-Acting' Miniature cylinders designed to provide reliable linear motion in industrial automation applications. They feature a low-friction operating mechanism, elastomer cushioning at both ends, and a variety of mounting options. The A51 series is non-magnetic, while the A52 series is equipped with a magnetic piston for position sensing

Brand: Janatics
Series: A51 / A52
Cylinder Type: Round Miniature Pneumatic Cylinder
Operation: Double-Acting
Bore Sizes: Ø12, 16, 20, 25 mm
Standard Stroke Lengths: 10, 25, 40, 50, 80, 100, 125, 160, 200, 250, 300 mm
Working Pressure: 0.5–10 bar
Working Medium: Filtered and lubricated compressed air
Medium Temperature: +5°C to +60°C
Mounting Options: Front foot, double foot, front flange, rear flange, front trunnion, rear trunnion
Construction: Aluminum, brass, steel, and sealing materials
