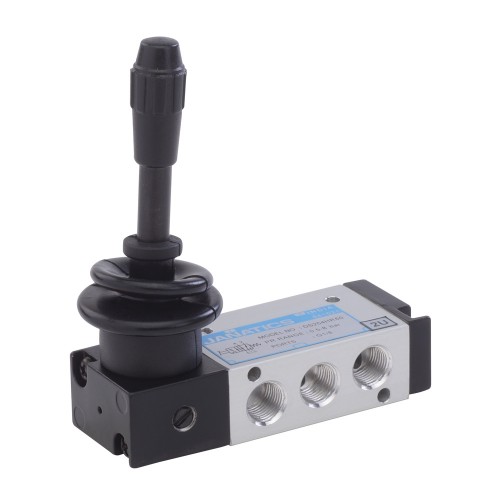

JANATICS HAND LEVER VALVES DS2

The JANATICS DS2 Series Hand Lever Valves are Manually Operated Pneumatic directional control valves designed for the reliable control of compressed-air flow. Featuring a spool-type construction, these valves are available in 3/2-way, 5/2-way, and 5/3-way configurations. Spring-return and detent options provide flexible operation for industrial automation and pneumatic machinery.

Brand: JANATICS
Series: DS2
Valve Type: Manual Hand Lever Operated Directional Control Valve
Valve Design: Spool Type
Port Size: G1/8", G1/4", G1/2"
Valve Functions: 3/2-way, 5/2-way, and 5/3-way
Operating Options: Spring Return and Detent
Medium: Filtered, lubricated compressed air
Maximum Working Pressure: Up to 10 bar
Applications: Pneumatic cylinder control, industrial automation, machine tools, packaging machinery, and manufacturing equipment.
