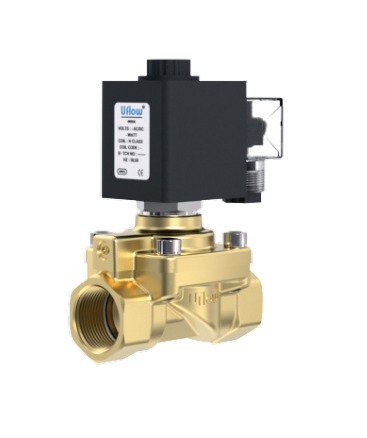

UFLOW HIGH PRESSURE PILOT OPE. DIAPHRAGM TYPE SOV PBU SERIES
The UFLOW PBU Series is a high-pressure pilot-operated diaphragm type solenoid valve designed for reliable ON/OFF control of compressed air and other compatible fluids. It is available in Normally Closed (NC) and Normally Open (NO) configurations and is designed for operating pressures up to 40 bar.
Port : ¾” & 1/2" (Available BSP / NPT)
End Connection : Screwed
Body Material : Forged Brass
Circumstance Temp : -10°C to 70°C
Operating Voltage :AC: 24V, 110V, 230V | DC: 12V, 24V
Media : Air, Water
