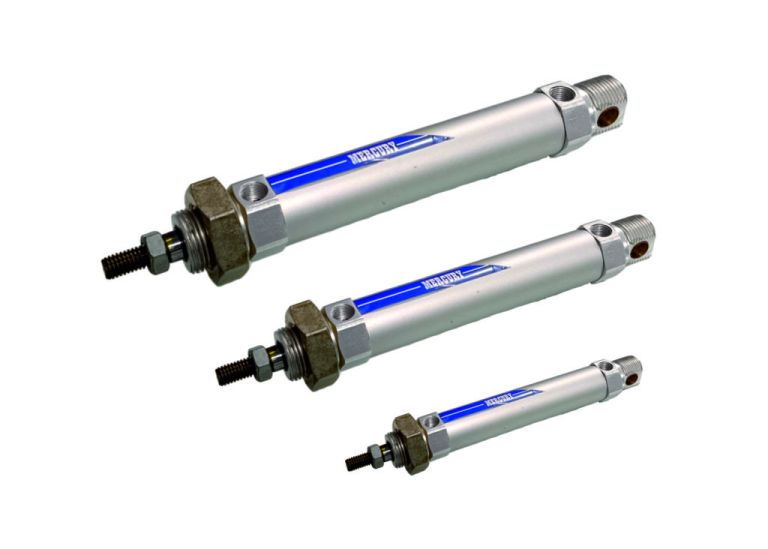

MERUCRY MICRO CYLINDER MN SERIES
The Mercury Micro Cylinder MN Series consists of compact, precision-engineered pneumatic cylinders designed for applications requiring small bore sizes and reliable linear motion. Their lightweight construction and low-friction sealing ensure smooth, jerk-free operation. They are available in single-acting and double-acting configurations, with both magnetic and non-magnetic options.
Brand: Mercury
Series: MN / MNM
Product Type: Micro Pneumatic Cylinder
Bore Size: 16 mm, 20 mm, 25 mm
Standard: ISO 6432
Stroke Length: Up to 1000 mm
Operation: Single-acting / Double-acting
Piston Type: Magnetic / Non-magnetic
Barrel Material: Honed and hard-anodized aluminum
Piston Rod: Hard chrome-plated
Piston Seal: Low-friction, self-adjusting T-ring seal
